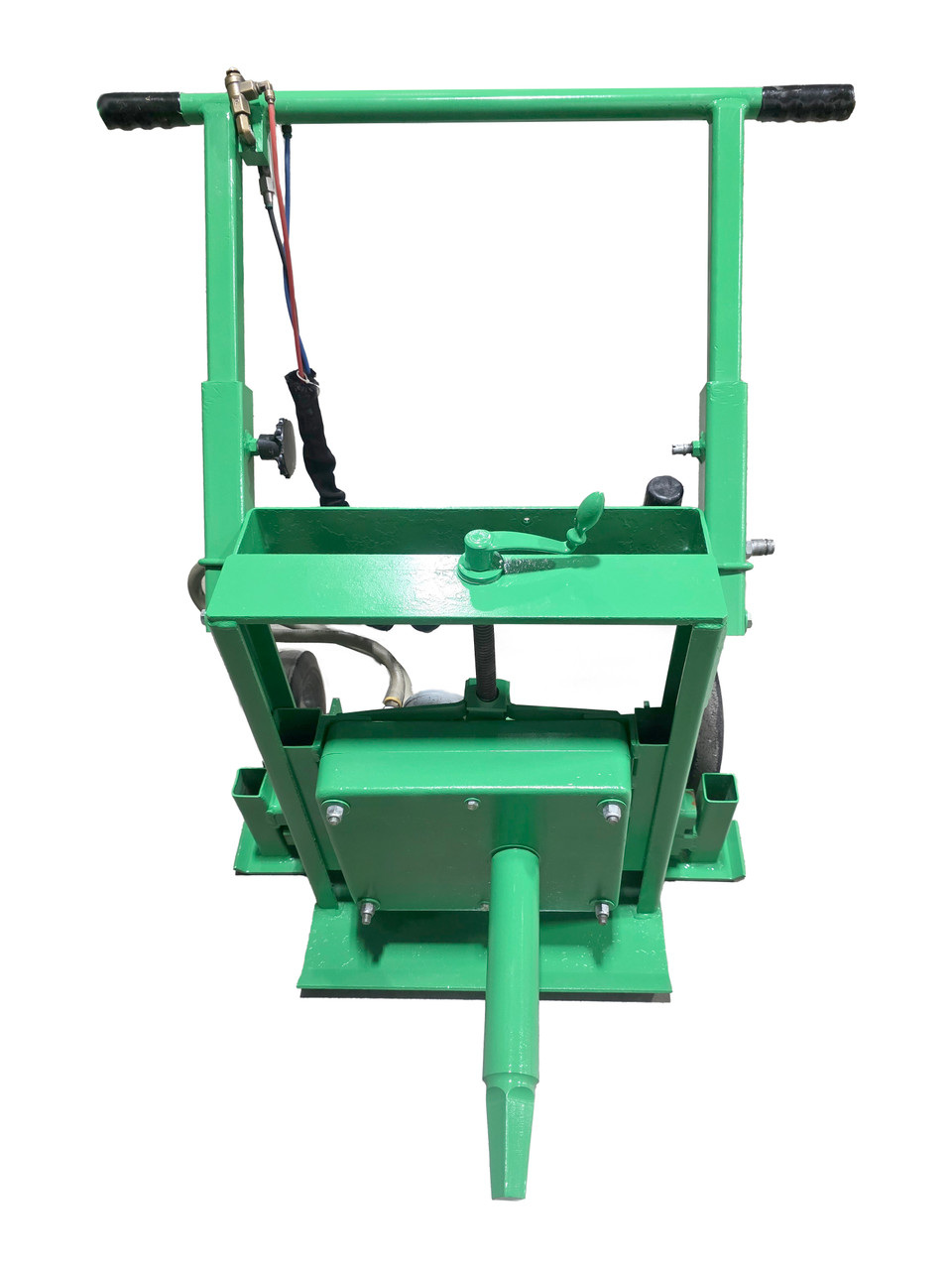

Pneumatic Railcar Gate Door Opener Air Operated Bulk GO-A2

Generates 1750 ft-lbs of torque output at 90 p.s.i.Suitable for these railcar unloading operations: High tensile aluminum cast housing to withstand rugged use and operator conditions Heavy-duty drive fitting accommodates railcar's capstan Smooth controlled force to facilitate steady gate opening Hand-held control valve enables operators to easily and safely open or close gate from 6" away Operates at less than 92 dBA to accommodate noise restrictions Operates at only 18 cfm at 90 psi to provide energy efficient force output at constant RPM Lightweight and portable

The GO-A2 is an air-powered, hand-portable, compact Gate Opener with hand-held controls for rapid Forward-Reverse action. The GO-A2 can utilize its capstan drive fitting, or fit over the barrel of a worn capstan and utilize the capstan’s socket notches. The GO-A2 is well suited for worksites that experience: • Railcars that vary from easy-to-open to moderately difficult because they are well maintained and regularly repaired; • Majority of railcars that have fixed position gate mechanisms; • Track side surface is level, smooth, and unobstructed (for cars with traveling gate mechanisms); • Narrow deck or platform precludes wheeled-cart or beam-mounted openers; • Site security requires portable, easy removal and storage of tools and equipment.

THE GO-A2 GENERATES A CONSTANT SPEED OF 8-RPM, AND A POWER OUTPUT OF 2,000 LB-FT.
