Product Overview

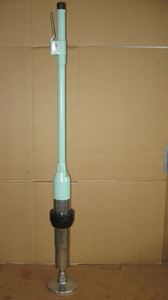

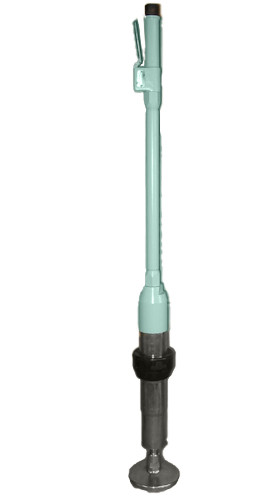

Completely Rebuilt Pneumatic Tamper by Sullair
Model: MBT-6
Applications |
The Sullair MBT-6 backfill tamper is the ideal tool for compacting backfill around utility poles, foundations and other structures. It quickly and efficiently compacts backfill soil excavated to perform service line repair before patching the pavement. |
|
Rotatable Exhaust Deflector |
A durable molded exhaust deflector aims the exhaust away from the operator. |
|
Standard Steel Butt |
A 6" diameter solid steel butt is standard. Optional butts for special applications are available. The butt is held onto the piston rod with a hex head clamp screw for ease of assembly and removal. |
|
Chrome Plating |
Smooth, chrome plated barrel promotes easy clean-off of backfill materials. |
|
Minimal Lubrication Required |
With the design features and premium materials of the MBT-6, normal oil carry-over from the compressor, combined with the moisture in the air, will supply sufficient lubrication under normal operating conditions. |
|
No Packing Adjustment |
There is no packing adjustment necessary for the Sullair MBT-6. The double seals retain their effectiveness for the life of the packing. |
Model: MBT-6
Length: 48 3/4"
Bore & Stroke: 1 1/2" X 5 1/2"
Impact Rate: 500 BPM
Air Consumption: 32 CFM
Air Inlet: 3/8" NPT or 7/8"-24
Butt Diameter: 6"
