Chicago Pneumatic CP-0450EA 24" Cold Rivet Compression Riveter w/ Auto Shut-Off

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Chicago Pneumatic
$15,999.99
SKU:
CP-0450EA-24COLDRIV_REBUILT AUTO SHUTOFF
Availability:
Chicago Pneumatic CP-0450EA 24" Cold Rivet Compression Riveter w/ Auto Shut-Off
Shipping:
Calculated at checkout
Current Stock:
1
Pin It

 Product Description

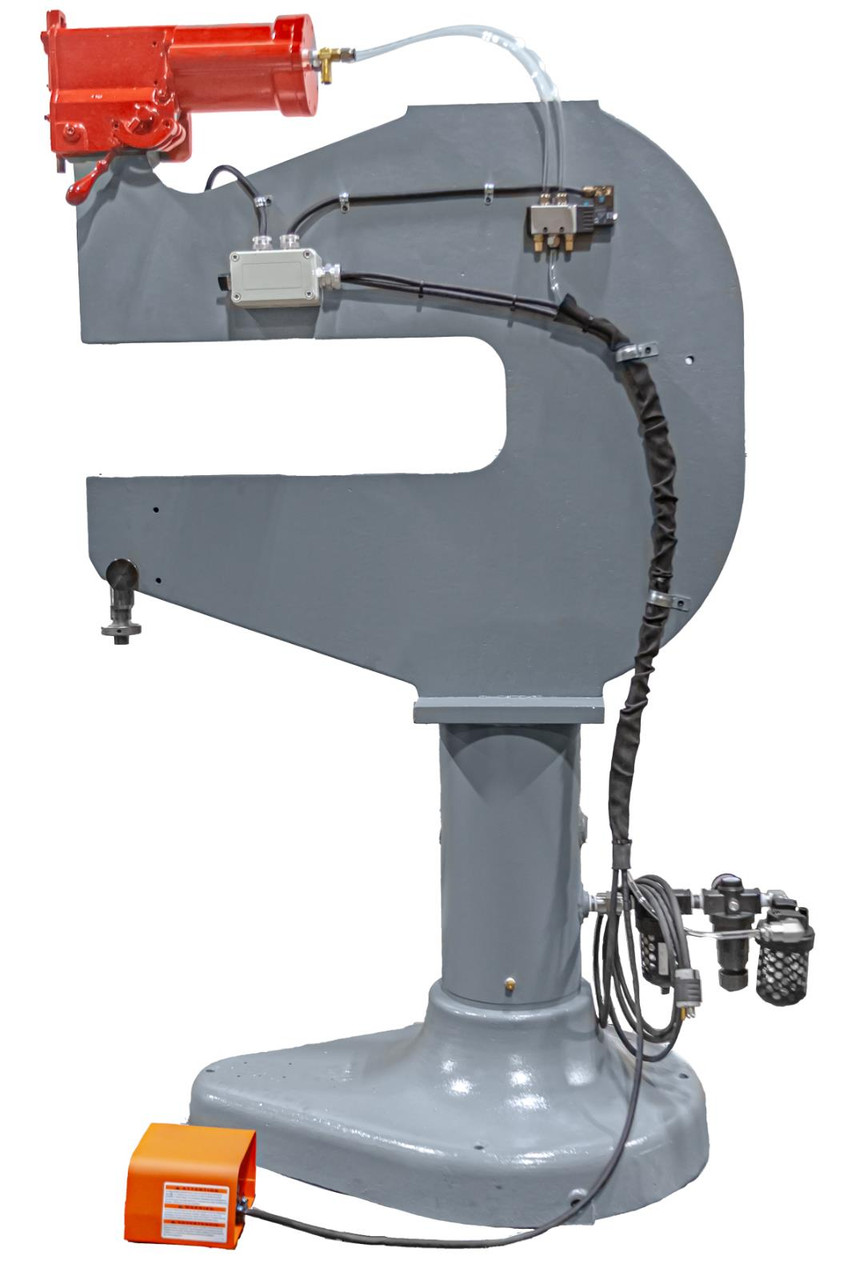

Completely Rebuilt 24" Reach Stationary Pedestal Compression with Auto Shut-Off Controls



Please allow 5 business day handling time...



12" & 18"  and 36" Available!! Contact Seller for details!



CP-0450-EA REBUILT (INCLUDES UNIT, FOOT CONTROL, AND STAND) Simply mount and provide air!!!

24 inch Reach Stationary Compression Riveter

Quiet, high volume assembly riveters, available as pedestal or bench mount.

Applications: Aircraft, automobile, truck, bus, boat appliance, metal furniture, RV's, electronic chassis, toys, assemblies, subassemblies, also stamping, punching, staking, pressing.

Features:

    Rolling cam and wedge assembly greatly multiplies compressive force of piston.
    Cold squeezes and expands for high joint integrity
    Operator adjustable compressive force, maximum 12,000 lb.
    One-man operation increases productivity
    Accurate, uniform riveting independent or operator skill level
    Short stroke adjustment allows varied starting positions for fast operation.
    Controllable piston speed
    Adjustable operating speed
    Automatic back head returns rivet set plunger to start position after forming rivet
    Adjustable set holder accommodates various rivet sets





Specifications -

Model

CP-0450-EA

Capacity

Alum.

1/4 "

6.4 mm

Steel

3/8 "

9.525 mm

Standard Yoke Dimensions

Reach

24”

Closed Height

2 ½”

Max. Force

20,000 lbs.

88.96 kN

Max. Travel

1 3/4 "

44.45 mm

Final Part of Stroke at max force

3/16 "

4.762 mm

Net Weight

2000 lbs.

907.2

Overall Width x Depth

62 X 38"



 1574.8mm X 965.2 mm
Contact us for a freight quote or other size units... "Set holders" and "rivet sets" sold separately!

 Warranty Information

All tools (NEW and REBUILT) have a 30 day warranty through us from the day you receive your tool so please use your tool at least once within 30 days of receiving it. The only tools that do not come with a 30 day warranty are tools that are stated as (USED). Used tools are only guaranteed to be in working condition when you receive them! In the event your tool has a warranty issue your tool will be repaired free of charge. If your tool cannot be repaired your tool will be replaced with one of the same make and model or you will be refunded completely. There is a 20% restocking fee on tools that are decided not correct for the job unless a larger or more expensive tool is purchased so please contact us if you are unsure what you need and we can help you determine what you need for the job.

ALL INTERNATIONAL CREDIT CARDS WILL BE CHARGED AN ADDITIONAL 10.00
IF YOU PURCHASE MORE THAN 1 ITEM YOUR CARD WILL ONLY BE CHARGED ONCE.

All customers located in the state of Michigan will be charged 6% Sales Tax
