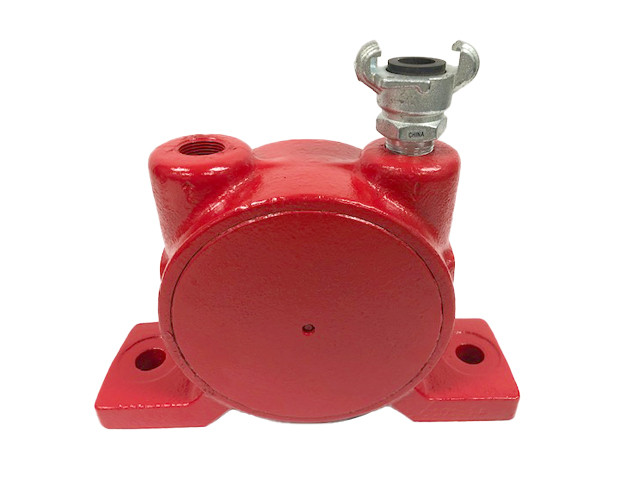

Heavy Duty Global Industrial Inc Pneumatic Vibrator US-25

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
Global Mfg Inc
$274.99
SKU:
US-25
Availability:
In Stock
Shipping:
Calculated at checkout
Current Stock:
1

 Product Description

Heavy Duty Ball Type Pneumatic Vibrator

Threaded Exhaust Port
Air Inlet: 1/2" NPT
Mount hole spacing: 7" center to center
@20 Psi: 6300 RPM 7.0 CFM 140Lb Force
@40 Psi: 8400 RPM 12.0 CFM 240 Lb Force
@60 Psi: 9100 RPM 16 CFM 280 Lb Force
@80 Psi: 9600 RPM 20 CFM 340 Lb Force

Advantages of Global Ball Vibrators
  • Rugged Construction - Bearing grade steel ball, hardened raceway, and a durable, hard to destroy, ductile iron housing.
  • Small, Lightweight.
  • O-Ring Seal - Seal prevents air leakage and keeps out environmental dust and water.
  • Maintenance Free - No motor or bearings.
  • No lubrication required.
  • Clean Operation - No oily mist because non-lubricated air is used.
  • Easy and Inexpensive to Rebuild - Repair Kits available to replace wearing parts, making vibrator like new.
  • High Frequency, Low Amplitude Vibration.
  • Versatile - Easy to control force and frequency by adjusting air supply.
  • Easy to Mount - 4 different housing types give choice of mount and connection.
  • Inexpensive solution to your flow problems.
  • Produces Uniform, Directional Flow.
Specifications
  • Filtered air - psi required depends on size and mount orientation.No lubrication required.
    • 2 - 80 psi (.1 - 5.5 bar).
    • 4 - 34 cfm (113 - 963 Lpm).
  • 80 - 90 dBA with muffler.
  • Nickel plated body available for food industry.
  • BS = single bolt mount inlet and exhaust ports on one end.
  • CS = two bolt mount - inlet and exhaust ports on side of unit – air travels in a “C” shape.
  • DS = four bolt mount - inlet and exhaust ports on side of unit – air travels in a “C” shape.
  • US = two bolt mount- inlet and exhaust ports on top of unit – air travels in a “U” shape.
  • Force output range up to 715 force pounds (3,180 N) at 80 psi based on model used.
  • Frequency range up to 22,800 rpm at 80 psi (5.5 bar) based on model used.
  • Operate up to 80 psi (5.5 bar) – higher psi permissible but wears unit faster.
  • Maximum Ambient Temperature up to 250ºF (121ºC).
  • Temperatures greater than 250ºF (121ºC) - order with Viton O-Rings.
